High-Efficiency Induction Heating Machine for Welding Fabrication

380V 3-Phase Induction Heating Machine For Welding Fabrication

Quick Detail:

Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder

Description:

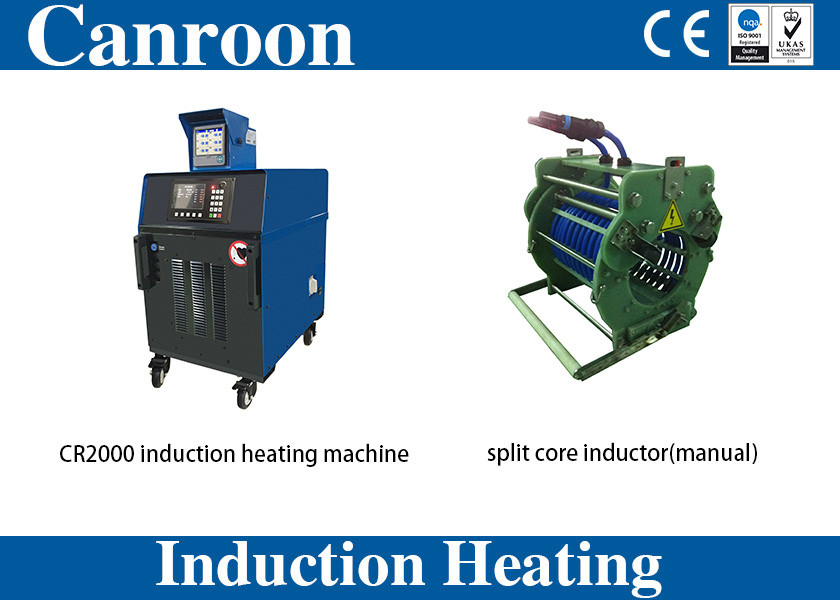

The CR2000 induction preheater is an advanced air-cooled heating system designed for welding preheat and industrial fabrication. Capable of reaching temperatures up to 1450°F, it delivers rapid and uniform heating through multiple output channels and six control thermocouples. Compared with conventional heating methods, the CR2000 achieves significantly faster heat-up times and higher process efficiency.

The system features an intuitive operator interface that supports programmable ramp-up and hold cycles, enabling precise temperature control for various applications. It also provides guided operation to help users maximize coil performance and ensure consistent heating quality across different workpieces.

Applications:

With the introduction of theInduction Heating Machine, this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

• Welding fabrication and construction;
• Preheating of welds;
• Post-weld heat treatment;
• Coating removal;
• Shrink Fit and so on

Specifications:

Competitive Advantage:

1. Ready for Any Jobsite: Designed with optional mobile gear, the CR2000 moves effortlessly through construction sites, pipeline projects, and heavy fabrication environments.

2. Intelligent Heating Workflow: Built-in temperature control lets operators set precise ramps and holds with minimal training.

3. Full Thermal Visibility: Multiple TC inputs ensure the system reacts instantly to real-time temperature changes for perfect heat uniformity.

4. Superior Weld Quality: Even heating throughout the zone enhances bonding strength and reduces weld defects.

5. Advanced Safety Features: Automated open-output detection and isolation fault shutdown deliver worry-free operation.

6. Cost-Saving by Design: With no fuel usage and highly reusable insulation, overall consumable costs drop significantly.

7. Material-Friendly Heating: Induction warms the core of the workpiece without damaging the surface or creating overheating marks.

8. Faster Throughput: Rapid heat-up shortens preheat cycles and keeps projects on schedule.

9. Cleaner, Safer Environment: No flame, no gas, no red-hot elements—just calm, controlled, energy-efficient heat.

10. Exceptional Power Efficiency: Over 90% efficiency means higher performance with lower energy consumption.

11. Effortless Deployment: Preheat blankets and flexible cables make setup quick, simple, and highly adaptable.

Tag:Induction Heating
